LUMINAIRE COMPONENTS

• Cast aluminum head fixed to the body by 4 pressure screws

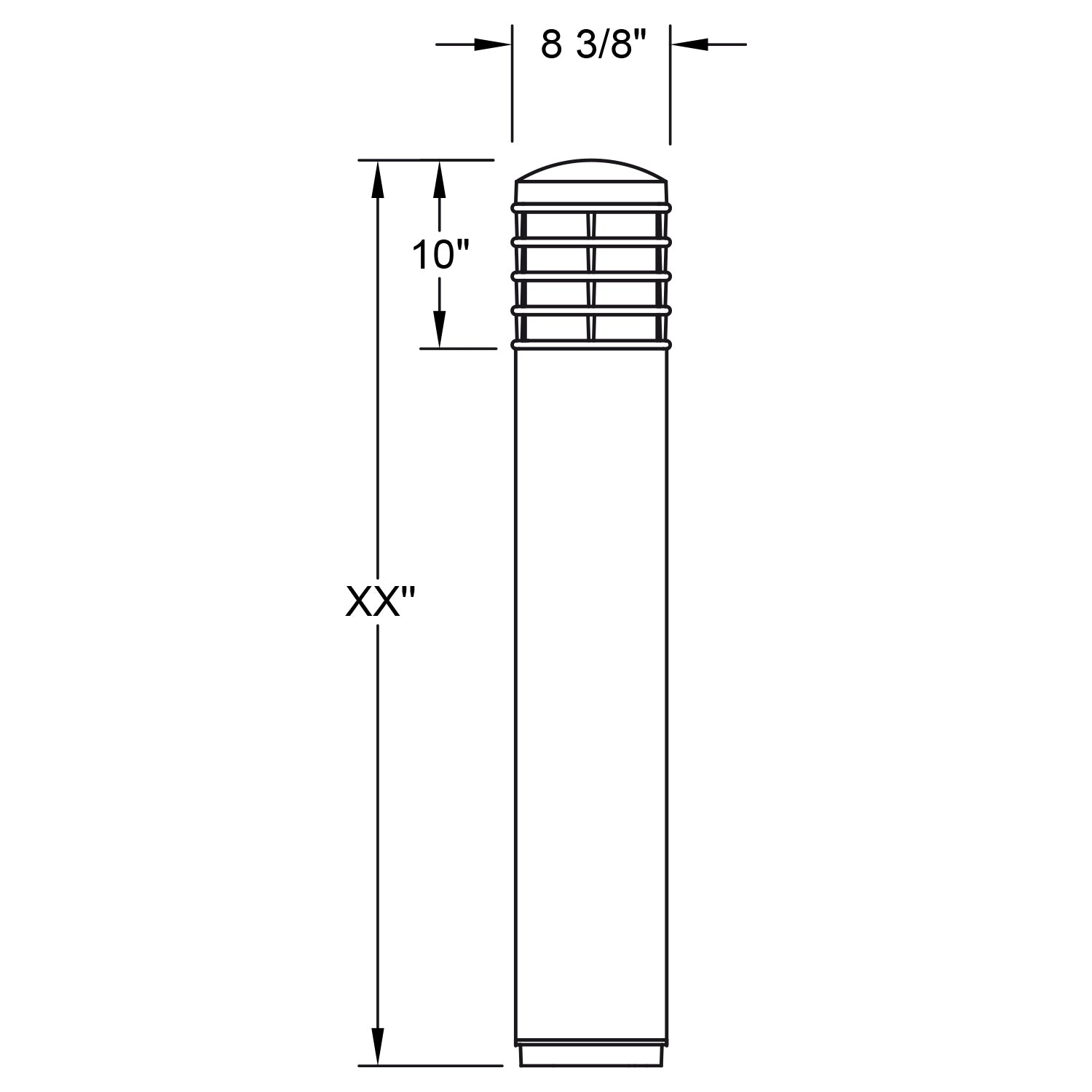

• Extruded aluminum tube 8" diameter, 1/8" wall thickness
• Cast aluminum anchor plate
• Anchor bolts concealed inside the tube
• Sealed optics ensuring compliance with the IP-66 standard

VOLTAGE

The Bollard B0 is available in 120V, 208V, 240V, 277V and 347V.

TYPES

Available with LED lighting system

V-type light distribution

POWERS

Watt available: 10W and 20W,

ADDITIONAL FEATURE

Version with baffles directing light downwards to reduce light pollution and provide additional protection against vandalism
